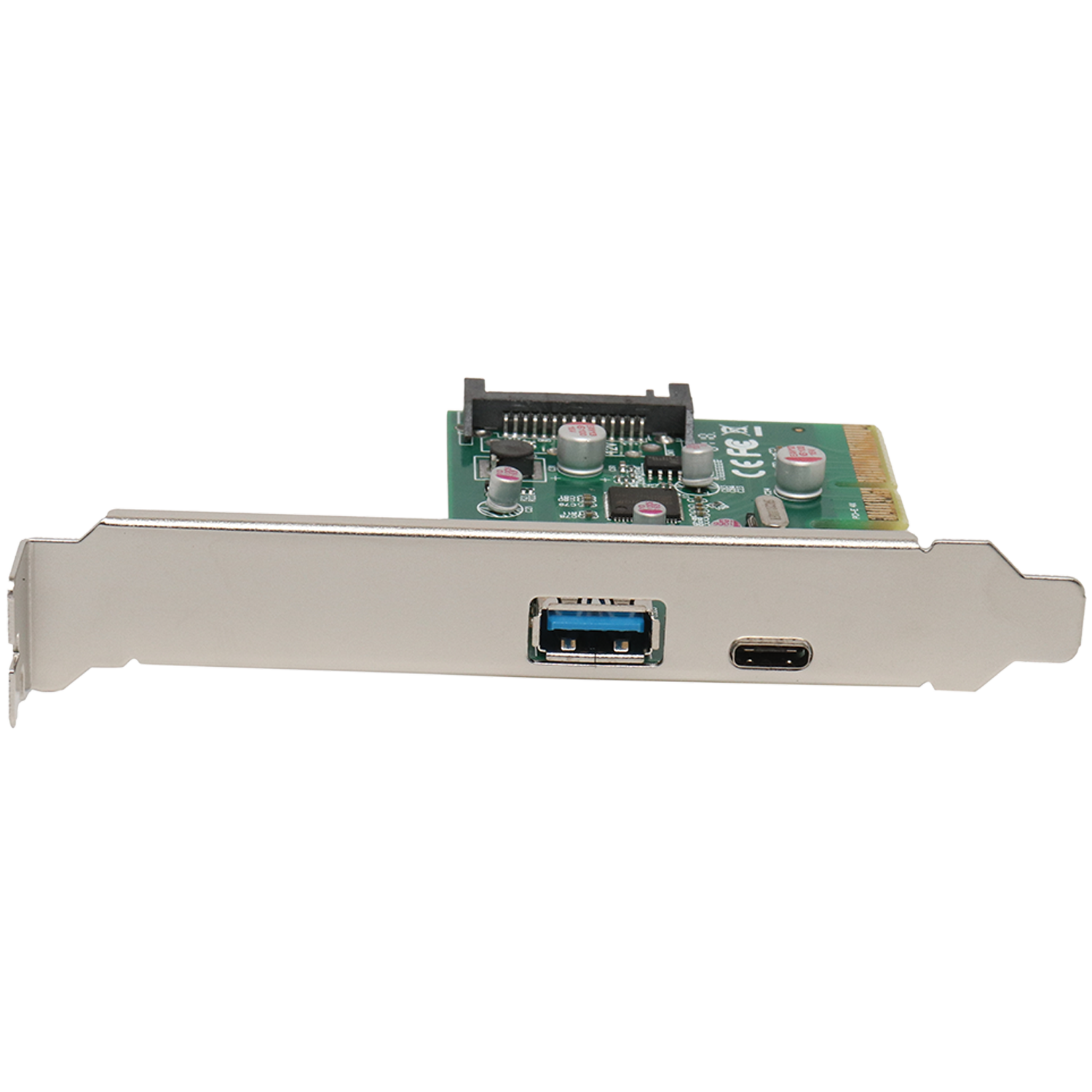

PCI-E to USB 3.1 Card (1 x Type-A + 1 x Type-C Ports)

2899

  • This USB 3.1 card lets you add one USB-Type C port and one USB-Type A port to your computer, through a PCI Express slot for a super-fast, convenient, and powerful data transfer solution.
  • It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port
  • Compatible with all USB 3.1, USB 3.0, USB 2.0, and USB 1.1 devices
  • Stable and reliable ASMEDIA Chipset ASM1142.
  • The PCI-E port fits in any PCIe x4 or x8 or x16 slot.
  • Low-profile bracket available for small computer & server case, like 1U & 2U,
  • Support 5V Max 2A power output to each USB 3.1 device
  • Built-in overcurrent protection and short circuit protection on each USB port
  • Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), High-speed (480 Mbps), and Full Speed (12 Mbps) transaction (Note: The actual transmission speed is limited by the setting of the device connected).
  • Compatible with Windows XP/7/8/8.1/10 or above, and drivers required.

Applications:

  • Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps) to easily connect legacy, modern, and future USB devices, regardless of the USB connector type.
  • Expand the USB capabilities of your system by adding one USB-C port and one USB-A port or install the card as a vital hardware component when building a new PC.
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions



Description

  • This USB 3.1 card lets you add one USB-Type C port and one USB-Type A port to your computer, through a PCI Express slot for a super-fast, convenient, and powerful data transfer solution.
  • It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port
  • Compatible with all USB 3.1, USB 3.0, USB 2.0, and USB 1.1 devices
  • Stable and reliable ASMEDIA Chipset ASM1142.
  • The PCI-E port fits in any PCIe x4 or x8 or x16 slot.
  • Low-profile bracket available for small computer & server case, like 1U & 2U,
  • Support 5V Max 2A power output to each USB 3.1 device
  • Built-in overcurrent protection and short circuit protection on each USB port
  • Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), High-speed (480 Mbps), and Full Speed (12 Mbps) transaction (Note: The actual transmission speed is limited by the setting of the device connected).
  • Compatible with Windows XP/7/8/8.1/10 or above, and drivers required.

Applications:

  • Upgrade an older PCIe equipped desktop from USB 3.0/2.0 to USB 3.1 Gen 2 (10Gbps) to easily connect legacy, modern, and future USB devices, regardless of the USB connector type.
  • Expand the USB capabilities of your system by adding one USB-C port and one USB-A port or install the card as a vital hardware component when building a new PC.
  • Ideal for file backups, video editing, and data recovery, using high-bandwidth USB 3.1 Gen 2 external storage solutions
