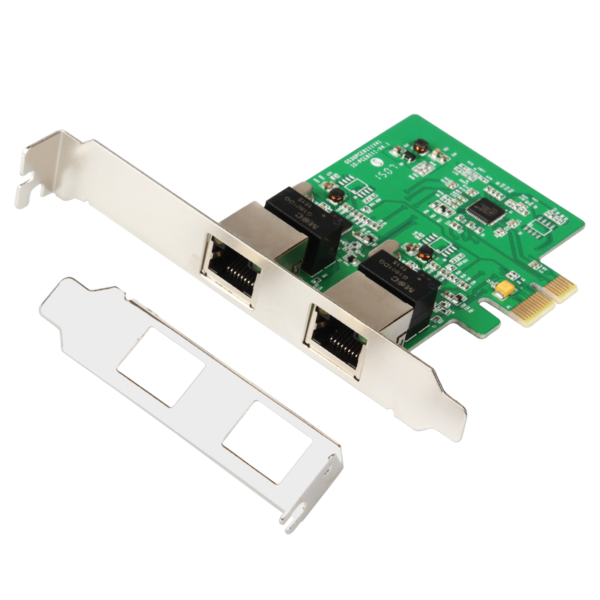

PCI-E 2-port Gigabit Ethernet Controller Card

3499

  • The card provides a low-cost solution for connecting to a high speed Local Area Network with a data transfer rate up to 1000 Mbps over a group of 4 twisted pair copper wires to a distance of 100 m.
  • Wake-on-LAN and remote wake-up support.
  • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation.
  • Task-offload (Large send v1 and Large send v2) support.
  • Supports EMAC-393 ECMA Proxy Standard for sleeping hosts.
  • Supports Full Duplex flow control (IEEE 802.3x).
  • Supports jumbo frame to 9K bytes.
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
  • Supports IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.1Q VLAN tagging.
  • Supports power down/link down power saving/PHY disable mode Built-in switching regulator.
  • Supports PCI MSI (Message Signalled Interrupt) and MSI-X.
  • Supports quad core Receive-Side Scaling (RSS).
  • Supports Dual 1-Lane 2.5 Gbps PCI-Express Bus.
  • Supports pair swap/polarity/skew correction.
  • Crossover Detection & Auto-Correction.
  • Supports hardware ECC (Error Correction Code) function.

Description

  • The card provides a low-cost solution for connecting to a high speed Local Area Network with a data transfer rate up to 1000 Mbps over a group of 4 twisted pair copper wires to a distance of 100 m.
  • Wake-on-LAN and remote wake-up support.
  • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation.
  • Task-offload (Large send v1 and Large send v2) support.
  • Supports EMAC-393 ECMA Proxy Standard for sleeping hosts.
  • Supports Full Duplex flow control (IEEE 802.3x).
  • Supports jumbo frame to 9K bytes.
  • Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
  • Supports IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.1Q VLAN tagging.
  • Supports power down/link down power saving/PHY disable mode Built-in switching regulator.
  • Supports PCI MSI (Message Signalled Interrupt) and MSI-X.
  • Supports quad core Receive-Side Scaling (RSS).
  • Supports Dual 1-Lane 2.5 Gbps PCI-Express Bus.
  • Supports pair swap/polarity/skew correction.
  • Crossover Detection & Auto-Correction.
  • Supports hardware ECC (Error Correction Code) function.
